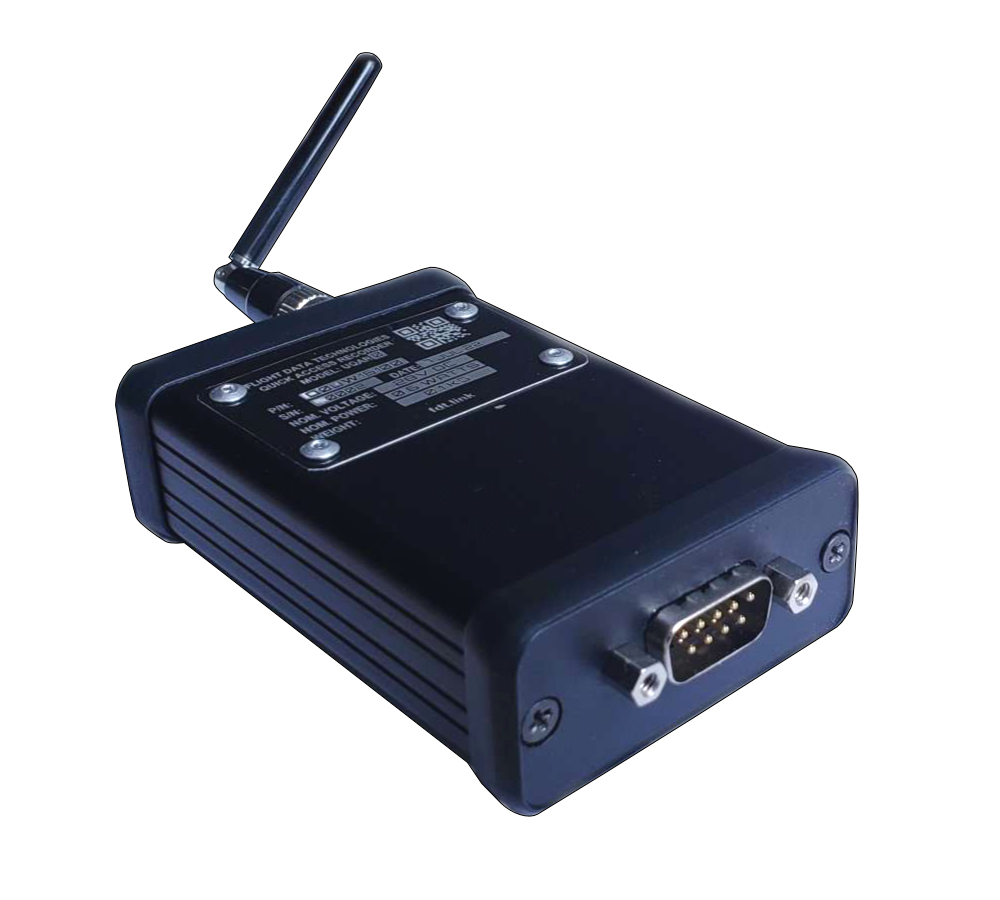

Ultra Quick Access Recorder

Main Characteristics

  • Meets or exceeds EUROCAE ED55/56A/112, FAR 25 requirements
  • Integral power supply accepts 115 VAC or 28 VDC input
  • Current consumption doesn’t exceed the magnitude of 0,01 A
  • Solid-state recorder
  • Memory capacity is at least 1 GB
  • Temperature range is between -60 C ° and + 60 C °
  • Can sustain a relative humidity up to 98%
  • Accumulative memory capacity exceeds 300 hours
  • Event registration frequency is every second
  • Weight is 0.08 kg

Download Options

  • Wi-Fi Protocol
  • 802.11 Wireless
  • Real time Monitoring
  • USB 2.0
  • Micro SD Flash Card

Features (Model 4700-FM1)

  • Data stored on internal media (or can SWAP entire unit for download)
  • Optional storage on FLASH Card
  • USB 2.0 download interface
  • LED status light
  • ARINC 573/717/747 compatible
  • 64/128/256/512/1024 wps

Features (Model 4700-FM1)

  • 28VDC or 115 VAC depending on FDR
  • 2A current consumption
  • -60C °to + 60C ° operation range
  • 32 grams total mass
  • Impedance > 10Kohm
  • 29mm X 65mm X 25mm
  • 64 GB storage (8,000+ hours)
Related products

LUCH

QAR can be used in conjunction with FOQA/FDA LUCH. Using both products simultaneously permits instantaneous Express Analysis on device of your choices.

See the LUCH SOLUTION
